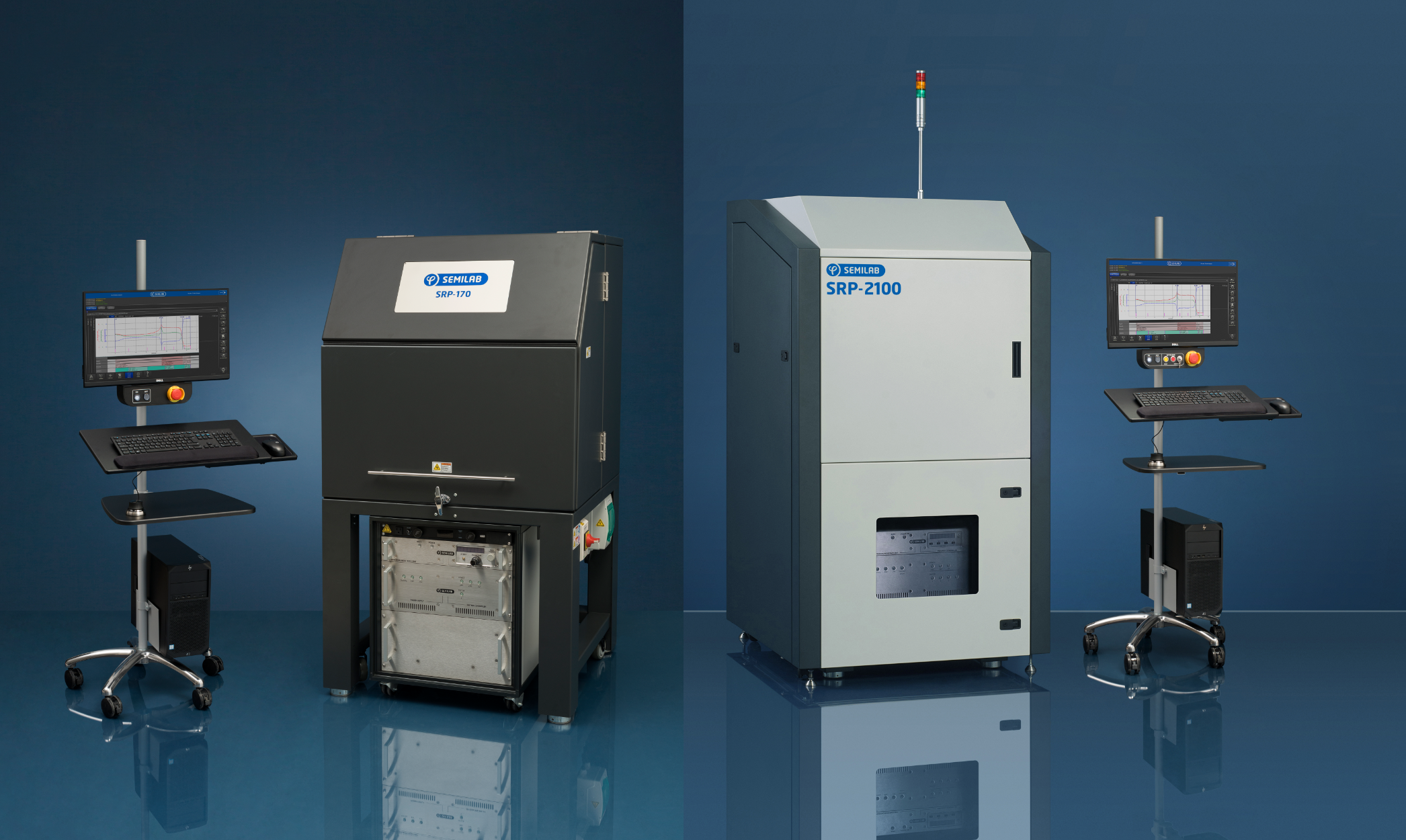

SRP-170 Spreading Resistance Profiling

The SRP-170 is a cost-effective, spreading resistance profiler designed for silicon semiconductor dopant and resistivity profiling. Ideal for universities, research institutes, and low-volume analytical labs, it offers reliable performance with manual loading and expert-guided operation. The additional sample preparation kit for in-house sample preparation.

‍

Dopant concentration and resistivity profiling in silicon epitaxial layers
Process monitoring of ion implantation
Real structure and junction depth determination of final devices
Research & education requiring cost-effective profiling

‍

Value & flexibility: Low consumable costs, ideal for educational and R&D applications
Compact Footprint with effective, high-quality vibration and acoustic isolation
Manual sample loading and stage alignment, with x-axis motorized
Touch-driven, easy-to-use interface for full measurement control
Stand-Alone Bevel sample polishing unit
Option: Bevel Angle Measurement (BAM): Laser sensor for precise bevel angle and depth profiling

‍

Measurement parameters:

Dopant concentration and resistivity
Carrier density and resistivity profile shape
Junction depth
Transition width
Electrically activated dose

‍
